The Lindy Cat.6 DisplayPort 1.2 & USB HDBaseT KVM Extender is a high-quality, reliable solution for extending high-quality 4K DisplayPort signals over long distances using standard Cat.6 network cables.

The following distance and resolution combinations are possible when using a high quality Cat.6 U/UTP or F/UTP solid core cable:
- 150m: 1920x1080@60Hz 4:4:4 8bit
- 100m: 3840x2160@60Hz 4:4: 4 8bit

Supporting resolutions up to 4K Ultra HD allows videos to be played back in stunning clarity. This is a reliable solution for creating eye-catching retail digital signage, immersive displays at events, or engaging setups in larger conference rooms or lecture halls.

This extender also supports lossless audio formats such as Dolby TrueHD and DTS-HD to provide video content with powerful multi-channel sound, giving the viewer a better experience and a sense of immersion. USB KM connectivity via 2 USB HID ports allows control of a DP equipped PC via a keyboard and mouse on the receiver, which can be stored in a secure or temperature-controlled environment while seamlessly delivering consistent video content from the source .

With bi-directional IR ports on both sides of the setup, the source device can be seamlessly controlled from the display side, and the display can also be controlled from the DisplayPort source device. RS-232 ports also allow integration into pre-installed control systems. In addition, the PoC (Power over Cable) functionality offers additional flexibility. This makes it possible to supply not only the data but also power via a Cat.6 network cable in a point-to-point connection between the transmitter and receiver, so that only a single power supply is required at the transmitter or receiver. This is ideal if, for example, there are only a few sockets on the receiver.

The extender's built-in EDID function ensures maximum compatibility with the display or projector on the receiver, further reinforcing the system's focus on delivering high-quality 4K DP content over long distances easily and with minimal effort for the user.

HDBaseT is a globally recognized standard for high-quality distribution of AV content and other technologies, including power and control, over longer distances over cost-effective Cat.6 or higher cables.

Technical data:
AV interface: DisplayPort
Interface standard: DisplayPort 1.2, USB 1.1
Supported Bandwidth: 21.6Gbps
Max. range: 150m
Maximum resolution:
3840x2160@60Hz 4:4:4 8bit
1920x1080 pixels
HDCP support: 2.2
EDID Pass Through: DIP switch with copy function
Audio: Pass Through
IR support: 20 - 60KHz
Serial interface: RS-232 pass through
Transmission protocol: HDBaseT
Transmission medium: Cat.6
Chipset: VS010-A0
Special features: Bi-directional IR, RS-232 and PoC

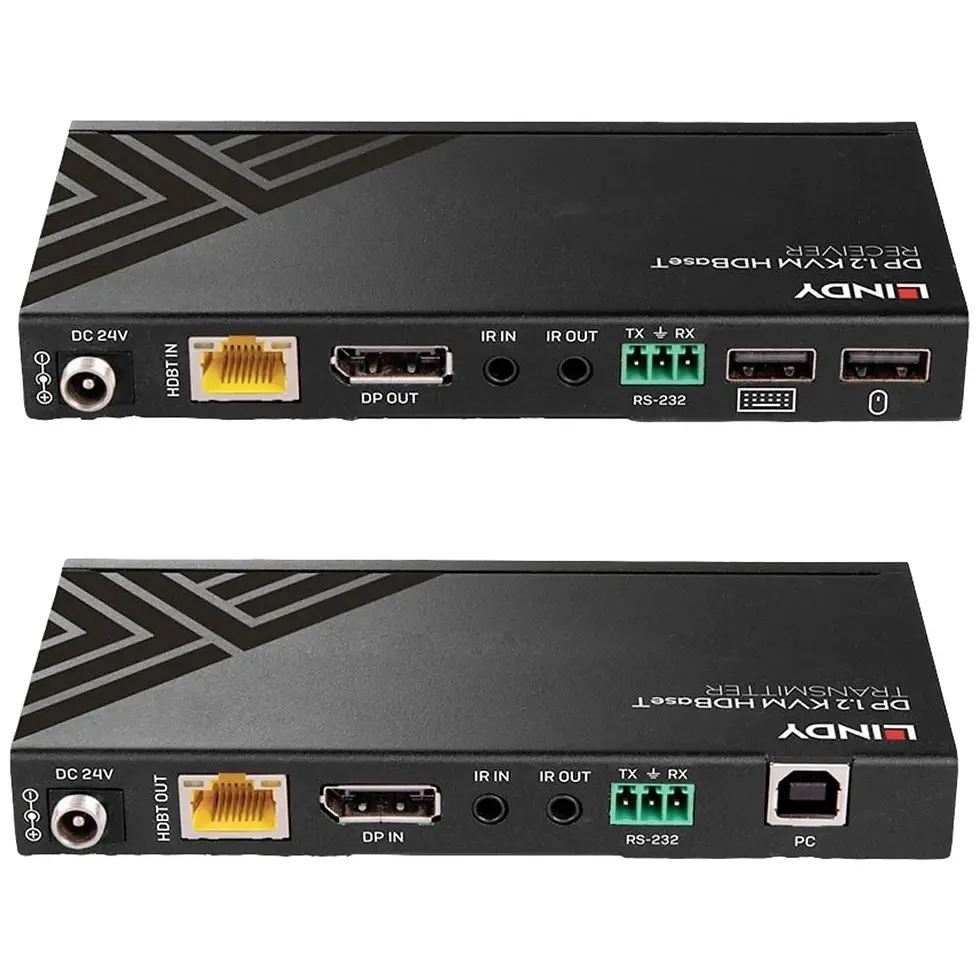

Transmitter inputs: DisplayPort socket, USB Type B socket, 3.5mm IR socket
Transmitter outputs: RJ-45 socket, 3.5mm IR socket
Receiver inputs: RJ-45 socket, 3.5mm IR socket
Receiver outputs: DP socket, 2x USB Type A socket, 3.5mm IR socket
Bidirectional ports: RS-232 3-pin terminal block
Power supply/power supply: 5.5/2.1mm
Power consumption: 24V/DC, 1A
Operating temperature: 0°C - 40°C (32°F - 104°F)
Storage temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Video about: Display port
Resolution video:
3840x2160 pixels
1920x1080 pixels
Ethernet ports: 2
Rack mounting possible: No
Switch/distributor special features:
Can be used bidirectionally
Metal case
Ultra HD ready
For internal use
Power supply: Mains operated
Manufacturer color: Black
Weight: 0.8kg
Length: 18mm
Width: 140mm
Height: 65mm
Dimensions (L x W x H): 18 x 140 x 65 mm
Product Type: KVM extender
