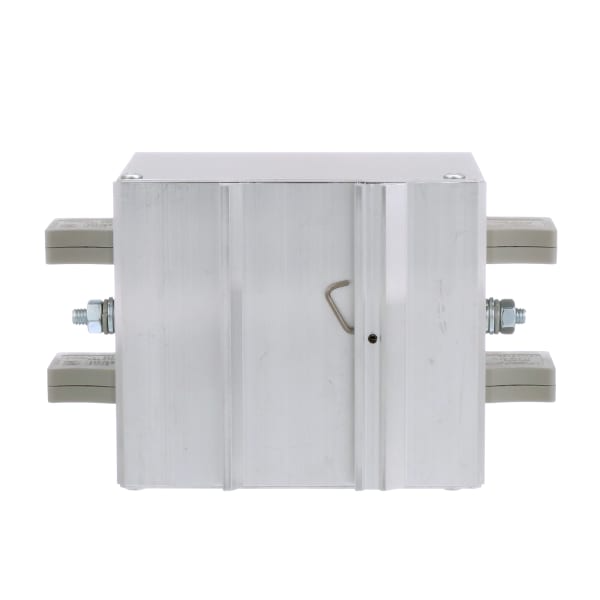

Schaffner FN2412H-32-33 EMC/RFI Filter 1-Ph 32A 520 VAC Safety DIN Rail High Volt FN 2412 Series

Overview
Schaffner FN 2410 and FN 2412 Series — Single-Stage Filters | EMC/RFI Filters for Industrial Electronics:

Excellent filter performance for applications with high interference levels. Filters for two-phase supply up to 2x 520 VAC (P-P) available. Fast and comfortable snap-in installation on popular TS 35 DIN-rails up to 45 A. Industrial grade terminal blocks for unsurpassed electrical safety.

Features:
FN 2410 filters up to 100 A are designed for traditional chassis mounting
For extra fast installation, FN 2412 filters up to 45 A can comfortably be snapped-in on popular TS 35 DIN-rails which are common in most electrical cabinets
Both FN 2410 and FN 2412 are also avail- able as H versions – Ideally suitable for an operation on two phases in a three-phase power network, handling voltages up to 520 VAC
All filters provide an exceptional conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
All filters retain the expected filter performance even in very noisy applications and under full load conditions
Touch-safe industrial grade terminal blocks provide maximum electrical safety and protect humans from undeliberate contact with life conductors

Applications:
Small to medium-sized machines and industrial equipment
High-end single-phase power supplies
Single-phase variable speed motor drives, inverters and converters
DIN-rail filter versions are ideal for panel building and electrical cabinets
Various noisy applications with higher power single-phase or two-phase supply
