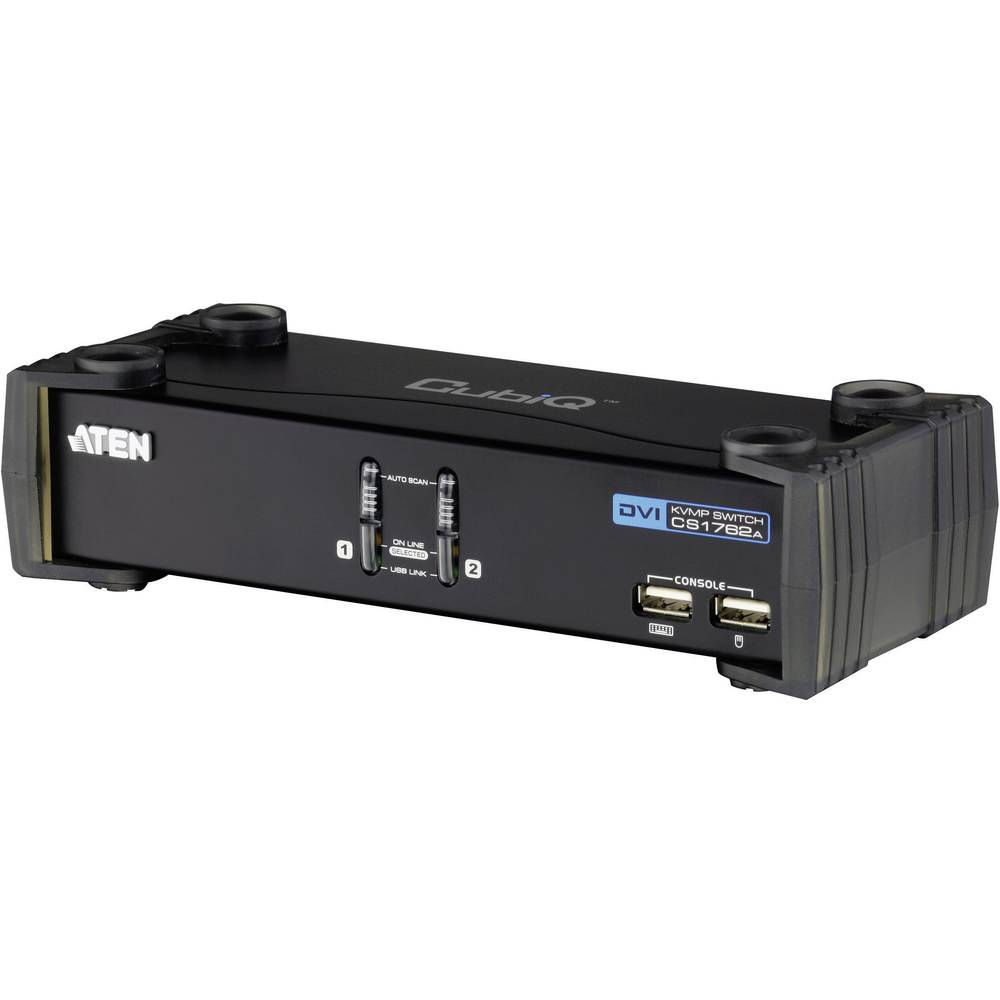

The CubiQ™ DVI-KVMP Switch with USB 2.0 CS1762A takes KVM functionality in a completely new direction by combining a 2-port KVM switch with a 2-port USB 2.0 hub. At the same time, it has connection options for a digital monitor (DVI). The KVM switch also includes ATEN's new Video DynaSync™ technology, which optimizes screen resolution and automatically detects powered devices - the latter meaning that when one computer is powered off, the CS1762A automatically switches to the next powered computer. As a KVM switch, it allows two computers to be controlled from a single console (USB keyboard, monitor and USB mouse). As a USB 2.0 hub, it allows computers connected to the unit to have time-shifted access to connected USB devices.
Technical data:
Product group: KVM switches / PC shares
Product Type: KVM Switch, DVI
Color: Black
Number of PCs: 2
Supported PC platform: USB
PC: Monitor connections: 2x DVI BU
PC: Mouse/Keyboard Ports: USB
PC: Connections to connected Cables: No
Number of digital consoles: 1
Analog consoles:
Monitor connections: 1x DVI BU
Mouse/Keyboard Ports: USB
Integrated console: No
Switching via scan run: Yes
Pressure switch on the device: Yes
Switching via hot key: Keyboard
Switching via OSD: No
Integrated USB hub: Yes
Number of ports USB hub: 2
Keyboard/mouse emulation: Yes
19" installable: No
Cascadable: No
Max. resolution (nominal): 1920x1200 pixels
Color (housing): Black
Material (housing): Metal
Dimensions (HxWxD): 21 x 87 x 55 mm
Power supply required: Yes
Power connection: Device Euro plug, Type-C
Height: 21mm
Width: 87mm
Depth: 55mm
Weight: 0.7kg
Packaging height: 180mm
Packaging width: 110mm
Packaging depth: 290mm
Package weight: 1.616kg
Gross weight: 1.616
Current catalog edition: January 24th
Current catalog page: 3.10
Video about: DVI
Resolution video: 1920x1200 pixels
Steering: USB
Audio headphones: No
Audio microphone: No
Number of USB ports 2.0: 3x
Cascadable: No
Rack mounting possible: No
Switching function: Hot key
Power supply: Via plug-in power supply
