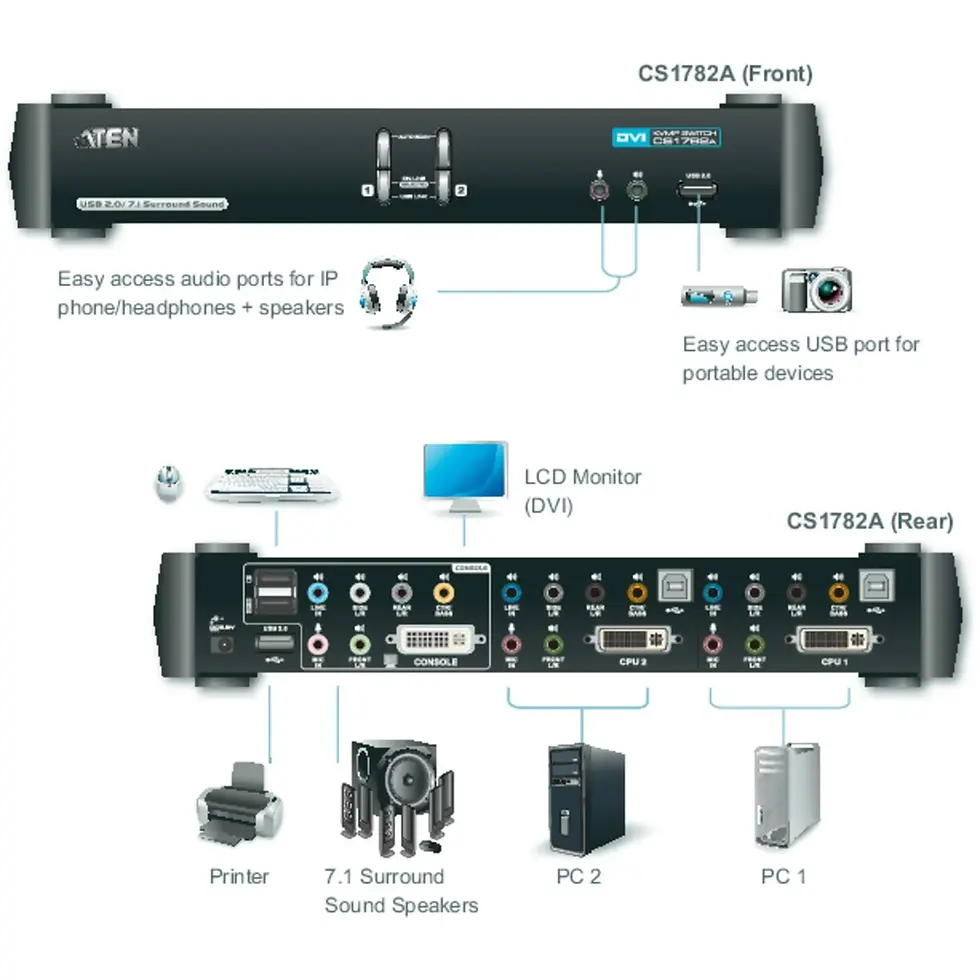

The CS1782A USB KVMP™ Switch for DVI Graphics (Dual Link) takes a completely new direction in KVM switch functionality. It combines the functions of a 2-port KVM switch with those of a 2-port USB hub and at the same time provides an interface for DVI image and sound transmission. The device is also equipped with the latest technology, including nVidia 3D Vision ready with 120 Hz, compatibility for gaming keyboards and port switching with a click of the mouse - all designed for maximum flexibility, comfort and efficiency.
Technical data:
Model Number: CS1782A-AT-G
2-port DVI-KVMP switch with USB 2.0 support and 7.1-channel surround sound transmission
One USB console controls two computers and two other USB devices
Built-in 2-port USB 2.0 hub, fully compatible with USB 2.0 specifications
Full bass range for an exceptional sound experience on 7.1 surround sound systems
Computer selection via front panel port select buttons, hotkey buttons, and mouse
Multiplatform compatible: Windows, Linux, Mac, and Sun
Independent switching between KVM, USB, and audio signals
Supports digital DVI and analog monitors - fully compatible with DVI specifications
Outstanding image quality: 1920 x 1200 at 60 Hz (Single Link); 2560 x 1600 at 60 Hz (Dual Link)
nVidia 3D Vision Ready: supports the latest LCD monitors with 120 Hz technology along with shutter glasses for 3D images at resolutions up to 1920 x 1080
Number of switchable PCs: 2
Video about: DVI
Resolution video: 2560x1600 pixels
Steering: USB
Audio headphones: Yes
Audio microphone: Yes
Number of USB ports 2.0: 3x
Cascadable: No
Rack mounting possible: No
Switching function: Hot key
Power supply: Via plug-in power supply
Manufacturer color: Black
Weight: 0.9kg
Length: 55mm
Width: 270mm
Height: 87mm
Dimensions (L x W x H): 55 x 270 x 87 mm
Product Type: KVM switch
